• Country
• Germany

• Manufacturer / Brand
• Ultrasound, Gebr. Schick GmbH & Co. KG; Pfungstadt

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249105

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF ? /10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / AA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

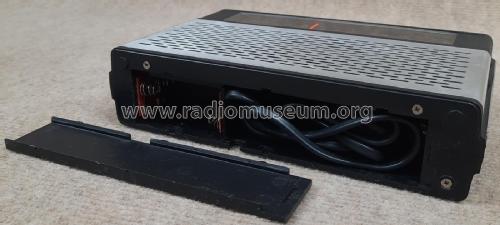

• Model: AM/FM U.K. Design Reg. No 983206 - Ultrasound, Gebr. Schick GmbH

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 143 x 52 mm / 8.3 x 5.6 x 2 inch

• Net weight (2.2 lb = 1 kg)
• 0.797 kg / 1 lb 12.1 oz (1.756 lb)

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
