• Country
• Japan

• Manufacturer / Brand
• Unica (Yunika); (where?)

• Year
• 1975 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 212377

• Number of Transistors
• 10

• Semiconductors
• M5102A 3SK44 AC141 2SC454 2SC454 2SC454 2SC454 2SC458 2SC460 2SC460

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Metal case

• from Radiomuseum.org

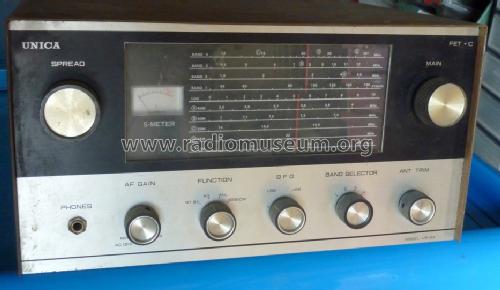

• Model: Unica UR-2A - Unica Yunika; where?

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 180 x 250 mm / 13.8 x 7.1 x 9.8 inch

• Notes
• Mech.filters for IF 455kHz.
  Sensibility 2 µV at 10 dB S/N
  BFO - antenna trimmer - S-meter
  Wavebands:
  1: 550 -1605 kHz
  2: 1,6 - 14,4 MHz
  3: 4,5 - 12 MHz
  4: 12 - 30 MHz

  plus 5 spread bands: 80m, 40m, 20m, 15m, 10m.

• Price in first year of sale
• 25,500.00 YEN

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Giancarlo Caldera. See "Data change" for further contributors.
