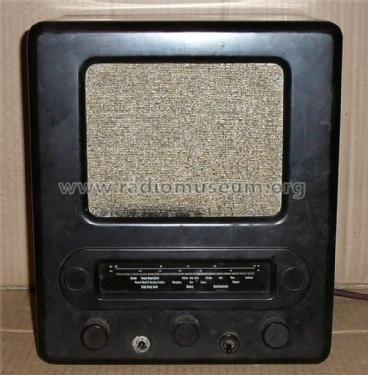

Volksempfänger VE301dyn

Unknown - CUSTOM BUILT: Bulgaria

  • Year
  • 1946 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210491

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Volksempfänger VE301dyn - Unknown - CUSTOM BUILT:
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • This radio came from Bulgaria. On the mains transformer was written in Bulgarian: the first word is not visible, the second means "improvement" / "improvements"(?) - last letter is not visible. "Central council of the science and technology associations' union. No Swastikas on the cabinet. This radio may not be manufactured in Bulgaria, modification with a "new" case plus the sticker was certainly made in Bulgaria. In that era radio receivers were sealed only to work on radio "Sofia". Offenbar ein (ehemaliges) Original Telefunken-Gerät, das "entnazifiziert" wurde durch Eratz des Gehäuses durch eine Nachkriegspressung ohne Hoheitszeichen links und rechts der Skala. Alles übrige ist original: Chassis, Lautsprecher, Rückwand. Auf dem Netztrafo klebt ein Zettel auf Bulgarisch etwa des Inhalts: Verbesserung (Berichtigung? Angleichung?), Zentralkommittee des Verbandes für Wissenschaft und Technik".
  • Author
  • Model page created by Peter Hughes. See "Data change" for further contributors.
