Victoria N66

Victoria N66; Unknown - CUSTOM (ID = 1445209) Radio Victoria N66; Unknown - CUSTOM (ID = 1445211) Radio
Victoria N66; Unknown - CUSTOM (ID = 1445213) Radio Victoria N66; Unknown - CUSTOM (ID = 1446671) Radio
Victoria N66; Unknown - CUSTOM (ID = 1620353) Radio Victoria N66; Unknown - CUSTOM (ID = 1620354) Radio
Victoria N66; Unknown - CUSTOM (ID = 1620355) Radio Victoria N66; Unknown - CUSTOM (ID = 1620356) Radio
Use red slider bar for more.
Victoria N66; Unknown - CUSTOM (ID = 1445209) Radio
Unknown - CUSTOM: Victoria N66 [Radio] ID = 1445209 933x1257
Select picture or schematic to display from thumbnails on the right and click for download.
For model Victoria N66, Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Victoria N66 - Unknown - CUSTOM BUILT: Japan
Material Moulded (Bakelite or Plastics)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 58 x 96 x 24 mm / 2.3 x 3.8 x 0.9 inch

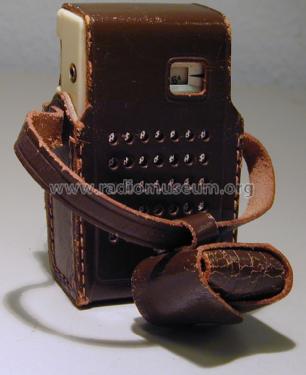

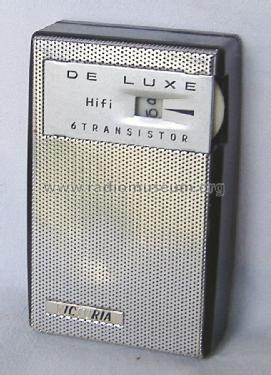

Notes Victoria N66 6 transistor , ABS cabinet with earphone socket and real leather case with carrying strap.
Net weight (2.2 lb = 1 kg) 0.170 kg / 0 lb 6 oz (0.374 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
