• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189905

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Video Sonic TVR-6001 - Unknown - CUSTOM BUILT: Japan

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 130 x 80 x 62 mm / 5.1 x 3.1 x 2.4 inch

• Notes
• MW 540 - 1600 KC. Ferrite antenna 6,5 cm.
  "S/N Ratio 25 db UP".
  Socket for magnetic earphone.

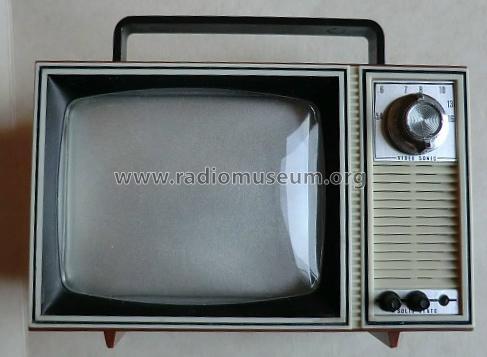

  Is shaped like a small TV.
  Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Felice Nicolini. See "Data change" for further contributors.
