• Country
• Great Britain (UK)

• Manufacturer / Brand
• V.S.E. Construction Company LTD.; London

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198404

• Number of Tubes
• 5

• Valves / Tubes
• CCH35 EF39 EBC3 CL33 CY31

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

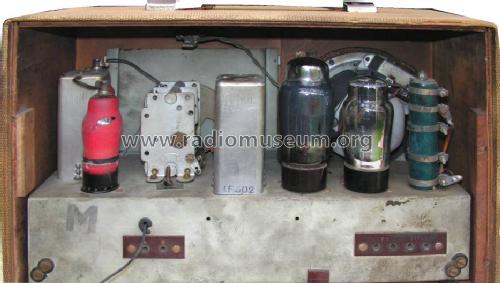

• Model: W-47 - V.S.E. Construction Company

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 230 x 200 mm / 14.2 x 9.1 x 7.9 inch

• Notes
• EBC3 with adaptor, not original (?).

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
