Weltbild Mini Radio "Stereo Anlage"

Weltbild Mini Radio 'Stereo Anlage' ; Unknown Worldwide (ID = 1615644) Radio Weltbild Mini Radio 'Stereo Anlage' ; Unknown Worldwide (ID = 1615645) Radio
Weltbild Mini Radio 'Stereo Anlage' ; Unknown Worldwide (ID = 1615646) Radio Weltbild Mini Radio 'Stereo Anlage' ; Unknown Worldwide (ID = 1615647) Radio
Use red slider bar for more.

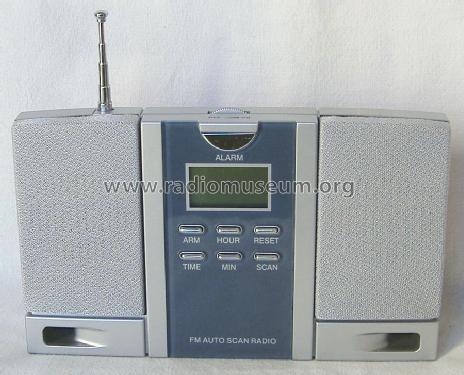

Weltbild Mini Radio 'Stereo Anlage' ; Unknown Worldwide (ID = 1615644) Radio
Unknown Worldwide: Weltbild Mini Radio "Stereo Anlage" [Radio] ID = 1615644 900x727
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltbild Mini Radio 'Stereo Anlage', Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 2000 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. SC1088 TDA2822
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Weltbild Mini Radio "Stereo Anlage" - Unknown Worldwide
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 150 x 90 x 40 mm / 5.9 x 3.5 x 1.6 inch
Notes

FM Auto Scan Radio,
2IC: SC1088, TDA2822M entgegen der Beschriftung keine Stereo Funktion.
Velagsgruppe Weltbild GmbH, Steinerne Fort,  86167 Augsburg.

Net weight (2.2 lb = 1 kg) 0.132 kg / 0 lb 4.7 oz (0.291 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
