Wendell-West CR-7A (Japan 109 & Hong Kong 109)

Wendell-West CR-7A ; Wendell-West Co.; (ID = 1518381) Radio Wendell-West CR-7A ; Wendell-West Co.; (ID = 811153) Radio
Wendell-West CR-7A ; Wendell-West Co.; (ID = 811156) Radio Wendell-West CR-7A ; Wendell-West Co.; (ID = 811159) Radio
Wendell-West CR-7A ; Wendell-West Co.; (ID = 811157) Radio Wendell-West CR-7A ; Wendell-West Co.; (ID = 811160) Radio
Wendell-West CR-7A ; Wendell-West Co.; (ID = 811163) Radio Wendell-West CR-7A ; Wendell-West Co.; (ID = 820691) Radio
Wendell-West CR-7A ; Wendell-West Co.; (ID = 820692) Radio Wendell-West CR-7A ; Wendell-West Co.; (ID = 820693) Radio
Use red slider bar for more.
Wendell-West CR-7A ; Wendell-West Co.; (ID = 1518381) Radio
Wendell-West Co.;: Wendell-West CR-7A [Radio] ID = 1518381 933x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wendell-West CR-7A (Japan 109 & Hong Kong 109), Wendell-West Co.; Seattle:
By Courtesy Of EBAY User: *1967* - Shop: ADAM'S E-SHOP

Country:  United States of America (USA)
Manufacturer / Brand:  Wendell-West Co.; Seattle
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Wendell-West CR-7A - Wendell-West Co.; Seattle
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7.13 x 4.5 x 1.56 inch / 181 x 114 x 40 mm
Notes

Wendell-West Transistor 8, Hi-Fi Deluxe CR-7A;

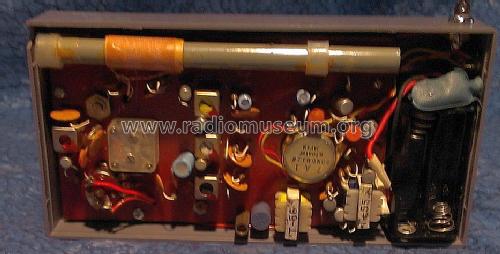

Portable transistor radio with leather case, ferrite bar & telescopic antenna!, earphone jack, Gross weight incl. full packing 0.700 kg,
There are >Hong-Kong< & >Japan< labeled versions known (Country name on rear type sticker is the only known difference yet), please add country of origin at your price uploads!

Made in Japan 109 & Hong Kong 109

Net weight (2.2 lb = 1 kg) 0.450 kg / 0 lb 15.9 oz (0.991 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
