Yüksel Solid State

Yüksel Solid State ; Unknown Worldwide (ID = 1372896) Radio Yüksel Solid State ; Unknown Worldwide (ID = 1372892) Radio
Yüksel Solid State ; Unknown Worldwide (ID = 1372893) Radio Yüksel Solid State ; Unknown Worldwide (ID = 1372894) Radio
Yüksel Solid State ; Unknown Worldwide (ID = 1372895) Radio Yüksel Solid State ; Unknown Worldwide (ID = 1372897) Radio
Yüksel Solid State ; Unknown Worldwide (ID = 1372898) Radio Yüksel Solid State ; Unknown Worldwide (ID = 1372899) Radio
Yüksel Solid State ; Unknown Worldwide (ID = 1372900) Radio Yüksel Solid State ; Unknown Worldwide (ID = 1372901) Radio
Use red slider bar for more.

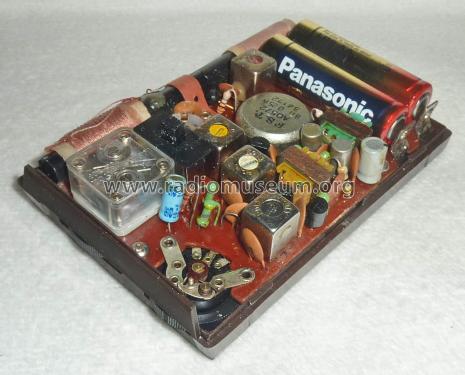

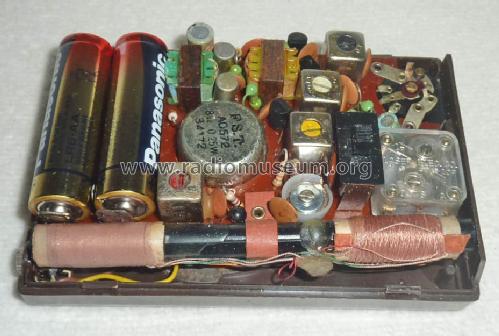

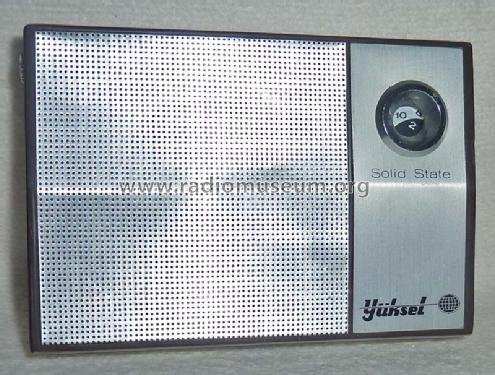

Yüksel Solid State ; Unknown Worldwide (ID = 1372896) Radio
Unknown Worldwide: Yüksel Solid State [Radio] ID = 1372896 800x831
Select picture or schematic to display from thumbnails on the right and click for download.
For model Yüksel Solid State, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.25 W (undistorted)
from Radiomuseum.org Model: Yüksel Solid State - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 107 x 75 x 30 mm / 4.2 x 3 x 1.2 inch
Notes

Kunststoffetui, Lederimitat

Model page created by Joachim Gittel. See "Data change" for further contributors.



All listed radios etc. from Unknown Worldwide
Here you find 721 models, 656 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
