CB-Funk-Basisstation B-2012P

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1199772) Citizen

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1199773) Citizen

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1199774) Citizen

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1199775) Citizen

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1199776) Citizen

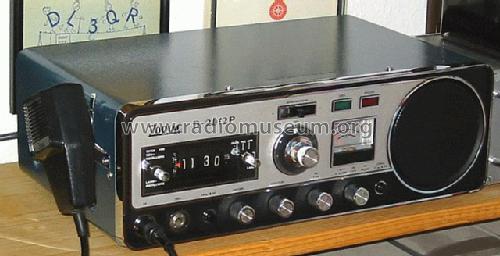

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 103306) Citizen CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 72124) Citizen
CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1850376) Citizen CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1850377) Citizen

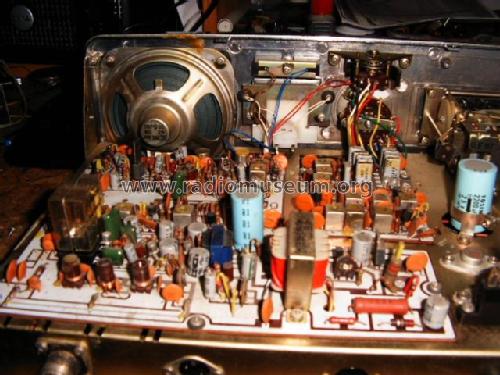

CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 1850378) Citizen
Use red slider bar for more.
CB-Funk-Basisstation B-2012P; Zodiac Funkgeräte (ID = 103306) Citizen
Zodiac Funkgeräte: CB-Funk-Basisstation B-2012P [Citizen] ID = 103306 640x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Funk-Basisstation B-2012P, Zodiac Funkgeräte GmbH, Düsseldorf

Country:  Germany
Manufacturer / Brand:  Zodiac Funkgeräte GmbH, Düsseldorf
Year: 1975 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 23:
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: CB-Funk-Basisstation B-2012P - Zodiac Funkgeräte GmbH,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 365 x 120 x 225 mm / 14.4 x 4.7 x 8.9 inch
Notes

12 Channels from 27005 to 27135 kHz, Frequency-Synthesis, Ampitudemodulation, Output ca. 0,5 Watts HF. Built in digital-mechanic switching-watch. Was a simplified spin-off from the B-5024 to fits german FTZ regulations (KF-004/75).

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'075.00 DM
Source of data -- Original prospect or advert

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Zodiac Funkgeräte GmbH, Düsseldorf
Here you find 23 models, 22 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
