Sigma S940
Sigma; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Sigma; Budapest
- Year
- 1933–1941
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 187440
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 22 cm = 8.7 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Sigma S940 - Sigma; Budapest
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 220 x 220 x 90 mm / 8.7 x 8.7 x 3.5 inch
- Notes
-
2400 Ohm.
2W
- Net weight (2.2 lb = 1 kg)
- 0.340 kg / 0 lb 12 oz (0.749 lb)
- Price in first year of sale
- 8.75 Pengő
- Source of data
- -- Collector info (Sammler)
- Mentioned in

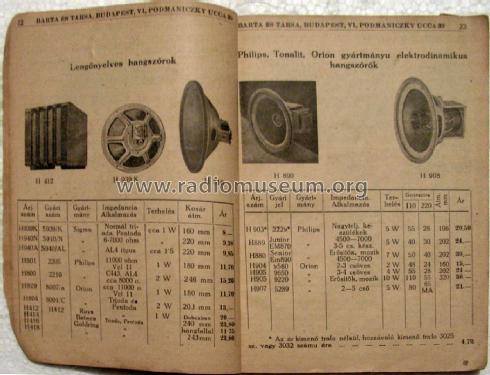

- -- Original prospect or advert (Hornyák árjegyzék 1941)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
