Inconnu - Unknown 2 Unic - 3372 (?)
Upel-Radio; (où? where?)
- Country
- Belgium
- Manufacturer / Brand
- Upel-Radio; (où? where?)
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321768
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 2 Unic - 3372 - Upel-Radio; où? where?
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 365 x 260 mm / 21.3 x 14.4 x 10.2 inch
- Notes
-
The cabinet of this model resembles the french model Unic 805, but the chassis is more close to Unic 908. Unic models also (usually?) have a security mains interruptor which is not present on this chassis.

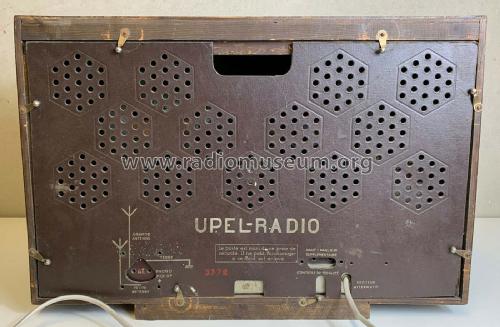

The back cover has provisions for additional tone control and a second antenna input, which do not match the chassis. Since there is a cut-out for the chassis serial number, the number printed in red might be a model number, but that is uncertain.
We take year and dimensions from Unic 805. Tube line-up partly not certain.
