Velence R646N

Velence R646N; Videoton; (ID = 91213) Radio

Velence R646N; Videoton; (ID = 1926943) Radio
Velence R646N; Videoton; (ID = 2216967) Radio Velence R646N; Videoton; (ID = 2216969) Radio
Velence R646N; Videoton; (ID = 90870) Radio Velence R646N; Videoton; (ID = 2216968) Radio
Velence R646N; Videoton; (ID = 2638193) Radio Velence R646N; Videoton; (ID = 90869) Radio
Velence R646N; Videoton; (ID = 2638194) Radio Velence R646N; Videoton; (ID = 2638195) Radio
Velence R646N; Videoton; (ID = 2638196) Radio Velence R646N; Videoton; (ID = 2638197) Radio
Use red slider bar for more.
Velence R646N; Videoton; (ID = 2216967) Radio
Videoton;: Velence R646N [Radio] ID = 2216967 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Velence R646N, Videoton; Székesfehérvár:
Perneky Sándor - Rádiómúzeum Alapítvány, Verőce, Hungary, radiomuzeum.hu

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1955–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 ECH81 EBL21 EZ80 EM4
Main principle Superheterodyne (common); ZF/IF 450 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details

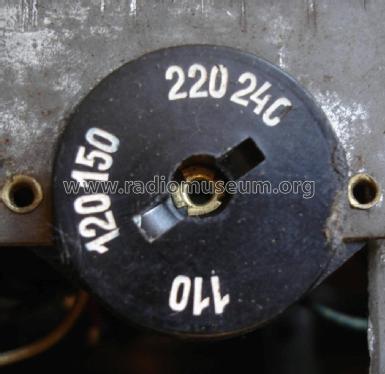

Power type and voltage Alternating Current supply (AC) / 110, 120, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Velence R646N - Videoton; Székesfehérvár

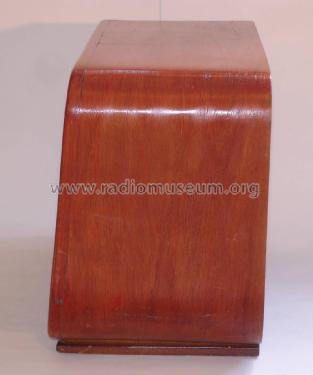

Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 280 x 190 mm / 16.5 x 11 x 7.5 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'180.00 Forint

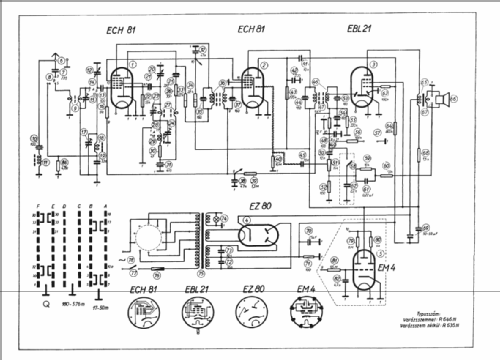

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
