Szimfonia de Luxe R4430

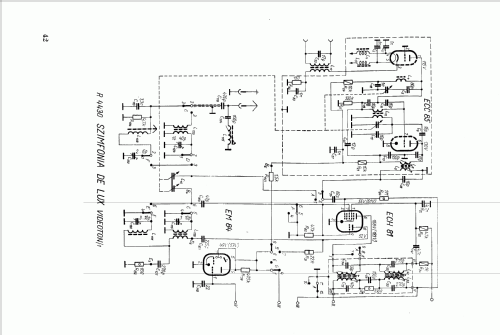

Szimfonia de Luxe R4430; Videoton; (ID = 141033) Radio

Szimfonia de Luxe R4430; Videoton; (ID = 141034) Radio
Szimfonia de Luxe R4430; Videoton; (ID = 475070) Radio Szimfonia de Luxe R4430; Videoton; (ID = 295523) Radio
Szimfonia de Luxe R4430; Videoton; (ID = 141044) Radio Szimfonia de Luxe R4430; Videoton; (ID = 295524) Radio
Szimfonia de Luxe R4430; Videoton; (ID = 307687) Radio Szimfonia de Luxe R4430; Videoton; (ID = 1184500) Radio
Szimfonia de Luxe R4430; Videoton; (ID = 1184501) Radio Szimfonia de Luxe R4430; Videoton; (ID = 1472275) Radio
Use red slider bar for more.
Szimfonia de Luxe R4430; Videoton; (ID = 475070) Radio
Videoton;: Szimfonia de Luxe R4430 [Radio] ID = 475070 800x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model Szimfonia de Luxe R4430, Videoton; Székesfehérvár:
A magyar rádiózás története..., 1997. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF80 ECL86 EM84 EZ80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Szimfonia de Luxe R4430 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 260 x 190 mm / 21.7 x 10.2 x 7.5 inch
Notes UKW 64-73,5 MHz
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 1'480.00 HUF
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1967-69

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
