Velence de Luxe R4360

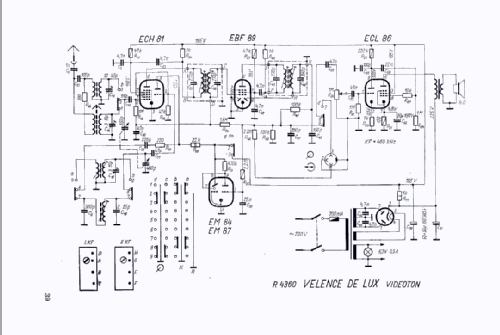

Velence de Luxe R4360; Videoton; (ID = 99702) Radio
Velence de Luxe R4360; Videoton; (ID = 141041) Radio Velence de Luxe R4360; Videoton; (ID = 644244) Radio
Velence de Luxe R4360; Videoton; (ID = 644246) Radio Velence de Luxe R4360; Videoton; (ID = 1654477) Radio
Velence de Luxe R4360; Videoton; (ID = 1654478) Radio Velence de Luxe R4360; Videoton; (ID = 1654479) Radio
Velence de Luxe R4360; Videoton; (ID = 1654480) Radio Velence de Luxe R4360; Videoton; (ID = 1827004) Radio
Velence de Luxe R4360; Videoton; (ID = 1827005) Radio Velence de Luxe R4360; Videoton; (ID = 1972517) Radio
Use red slider bar for more.
Velence de Luxe R4360; Videoton; (ID = 141041) Radio
Videoton;: Velence de Luxe R4360 [Radio] ID = 141041 933x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Velence de Luxe R4360, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECL86 EM84 or EM87 EZ80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: Velence de Luxe R4360 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 220 x 180 mm / 18.9 x 8.7 x 7.1 inch
Notes Modell ähnlich den Typen R4330 & R4350, aber mit Gleichrichterröhre.
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Source of data Radio es Televizio Vevö keszülekek 1967-69

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
