FM-Tuner FD1B

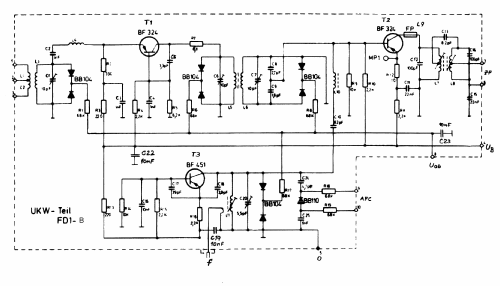

FM-Tuner FD1B; Valvo GmbH, (ID = 652671) mod-past25
FM-Tuner FD1B; Valvo GmbH, (ID = 652110) mod-past25
Use red slider bar for more.
FM-Tuner FD1B; Valvo GmbH, (ID = 652110) mod-past25
Valvo GmbH,: FM-Tuner FD1B [mod-past25] ID = 652110 900x431
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-Tuner FD1B, Valvo GmbH, Radioröhrenfabrik; Hamburg

Country:  Germany
Manufacturer / Brand:  Valvo GmbH, Radioröhrenfabrik; Hamburg
Year: 1974 ? Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 3: BF324 BF451 BF324 BB104 BB104 BB104 BB104 BB110
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 6 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FM-Tuner FD1B - Valvo GmbH, Radioröhrenfabrik;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 54 x 42 x 19 mm / 2.1 x 1.7 x 0.7 inch
Notes Valvo FM-Tuner FD1B ist ein FM-Frontend mit ZF-Ausgang. Das erste ZF-Filter hinter der Mischstufe ist Bestandteil des Tuners. AFC, Koax-Ausgang für Frequenzanzeige-Applikationen.
Nachfolgemodell des FD1 / FD1A.
