• Country
• Germany

• Manufacturer / Brand
• Valvo GmbH, Radioröhrenfabrik; Hamburg

• Year
• 1960/1961

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 149971

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PC86 PC86

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / AC 7,6 & DC 170 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

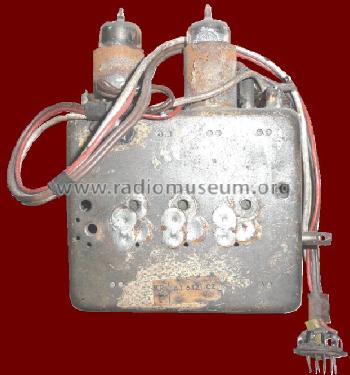

• Model: UHF-Tuner AT 6321 /01 /01S /02 /11 - A3 143 98 - A3 192 95 - Valvo GmbH, Radioröhrenfabrik;

• Shape
• Chassis only or for «building in»

• Notes
• Fernsehtuner für das UHF-Band IV und V. Drehkondensator-Abstimmung.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
