Regulated DC Power Supply

Regulated DC Power Supply ; Vanco International; (ID = 2088862) Power-S Regulated DC Power Supply ; Vanco International; (ID = 2088863) Power-S

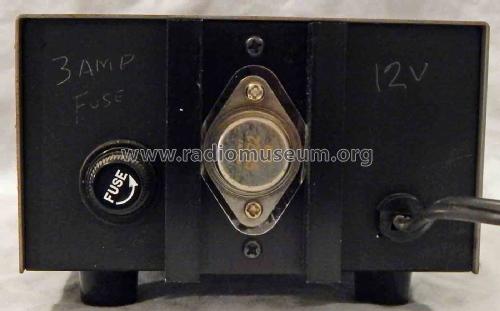

Regulated DC Power Supply ; Vanco International; (ID = 2088864) Power-S Regulated DC Power Supply ; Vanco International; (ID = 2088865) Power-S

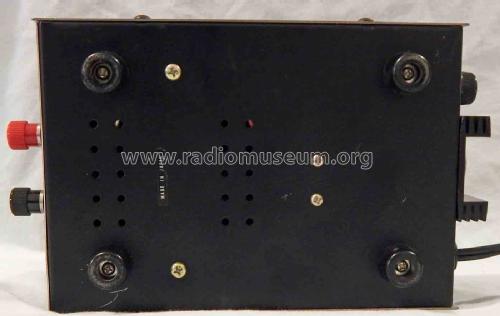

Regulated DC Power Supply ; Vanco International; (ID = 2088866) Power-S
Use red slider bar for more.
Regulated DC Power Supply ; Vanco International; (ID = 2088862) Power-S
Vanco International;: Regulated DC Power Supply [Power-S] ID = 2088862 1400x846
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regulated DC Power Supply, Vanco International; Batavia, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Vanco International; Batavia, IL
Year: 1985 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) 1:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Regulated DC Power Supply - Vanco International; Batavia,
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 4.75 x 7 x 3 inch / 121 x 178 x 76 mm
Notes

The Vanco Regulated DC Power Supply has an output of 12 VDC at 2.5 amps. The unit was made in Japan.

Model page created by Wayne Childress. See "Data change" for further contributors.



All listed radios etc. from Vanco International; Batavia, IL
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
