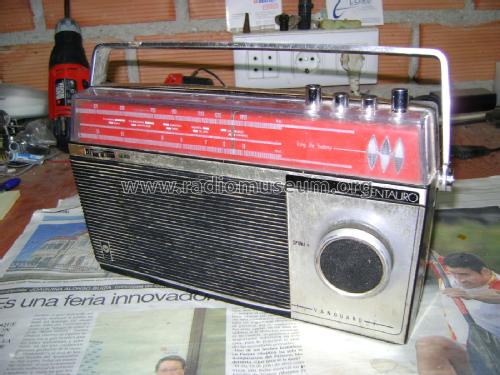

Centauro 37PT-S7

Centauro 37PT-S7; Vanguard; Hospitalet (ID = 285142) Radio
Use red slider bar for more.
Centauro 37PT-S7; Vanguard; Hospitalet (ID = 285142) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SF115 SF115 SF115 SL300_Trans AC188 AC188 SFD112
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details

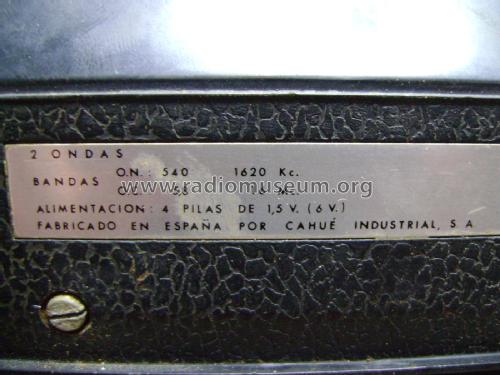

Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Centauro 37PT-S7 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Portable car radio.

Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
