Delta FM 30PT-S5

Delta FM 30PT-S5; Vanguard; Hospitalet (ID = 284411) Radio
Delta FM 30PT-S5; Vanguard; Hospitalet (ID = 1224657) Radio Delta FM 30PT-S5; Vanguard; Hospitalet (ID = 1618859) Radio
Use red slider bar for more.

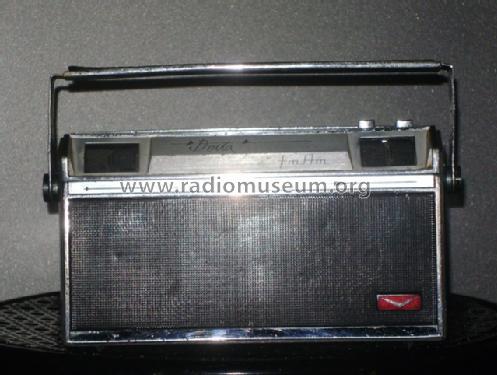

Delta FM 30PT-S5; Vanguard; Hospitalet (ID = 1224657) Radio
Vanguard; Hospitalet: Delta FM 30PT-S5 [Radio] ID = 1224657 640x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delta FM 30PT-S5, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF121 AF125 AF116 AF116 AF116 AC126 AC126 AC128 AC128 SFD107 SFD112 1N542
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: Delta FM 30PT-S5 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Price in first year of sale 3'298.00 ESP
Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
