• Country
• Spain

• Manufacturer / Brand
• Vanguard; Hospitalet de Llobregat

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 258449

• • alternative name: Cahué Industrial

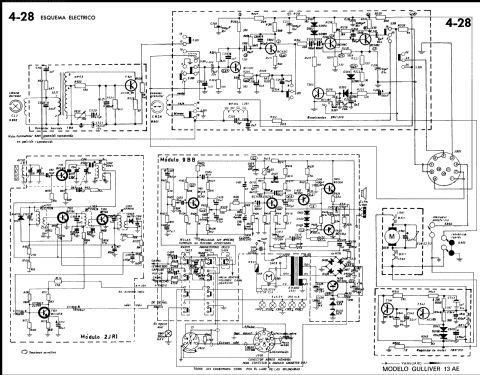

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• BF195 BF194 BF194 BC148 BC149 BC149 BC148 BC148 BC148 AC188 MC140 BC149 BC149 BC147 BC147 MC250 MC250 BD131 BD131 BD132 BD132 MC260 MC260 AA119 SD510 SD530 SD560 SZ6

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Gulliver 13-AE - Vanguard; Hospitalet de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 512 x 167 x 308 mm / 20.2 x 6.6 x 12.1 inch

• Notes

• Montado plato tocadiscos estéreo modelo CT600. El equipo cassette es mono.

  Utiliza dos bafles modelo 7BA (180x140x263 mm). Peso 2 kg cada uno no contados en el peso del equipo.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
