Jupiter 23PT-S3

Jupiter 23PT-S3; Vanguard; Hospitalet (ID = 284273) Car Radio
Jupiter 23PT-S3; Vanguard; Hospitalet (ID = 1627490) Car Radio Jupiter 23PT-S3; Vanguard; Hospitalet (ID = 1627492) Car Radio
Use red slider bar for more.
Jupiter 23PT-S3; Vanguard; Hospitalet (ID = 1627490) Car Radio

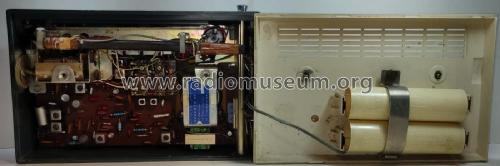

Vanguard; Hospitalet: Jupiter 23PT-S3 [Car Radio] ID = 1627490 535x346
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter 23PT-S3, Vanguard; Hospitalet de Llobregat:
..todocoleccion.net/vanguard-9-transistores-jupiter-2-hondas-4-pilas-1-5-voltios-6-vatios~x18096960

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1965 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 9: AF114 AF114 AF126 AF126 AF126 OC75 OC75 OC74 OC74
Main principle Superhet with RF-stage
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 6 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Jupiter 23PT-S3 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Diodes: 3× Unknown.
Radio de coche portable.
Portable car radio.
Collectors' prices

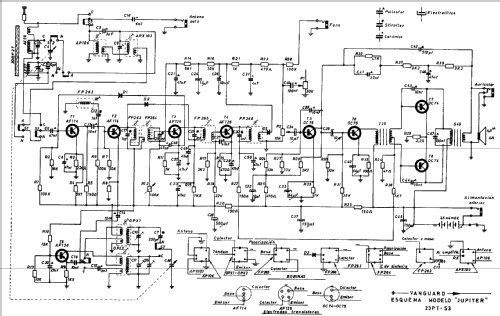

Literature/Schematics (1) -- Schematic
