Relay 38PT-S5

Relay 38PT-S5; Vanguard; Hospitalet (ID = 284728) Radio
Relay 38PT-S5; Vanguard; Hospitalet (ID = 1381769) Radio Relay 38PT-S5; Vanguard; Hospitalet (ID = 1381770) Radio
Relay 38PT-S5; Vanguard; Hospitalet (ID = 1381771) Radio Relay 38PT-S5; Vanguard; Hospitalet (ID = 1381772) Radio
Use red slider bar for more.
Relay 38PT-S5; Vanguard; Hospitalet (ID = 1381769) Radio

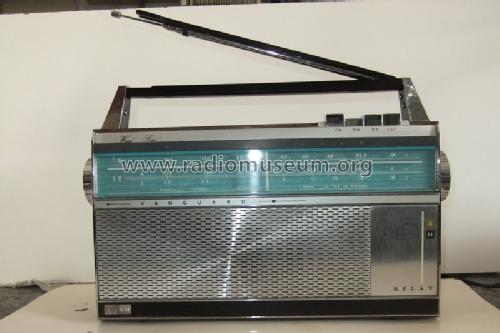

Vanguard; Hospitalet: Relay 38PT-S5 [Radio] ID = 1381769 800x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Relay 38PT-S5, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: SF115 SF115 BF115 SL300_Trans SL300_Trans SL300_Trans SL300_Trans 2N3739 2N3793 AC139 AC139 BB100 1N541 SFD107 SFD112 1N542
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Relay 38PT-S5 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Altavoz / Loudspeaker = 4" × 6".

Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Vanguard; Hospitalet de Llobregat
Here you find 95 models, 65 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
