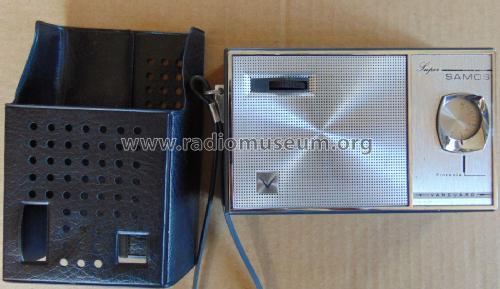

Super Samos 29PT-S4
Use red slider bar for more.
Vanguard; Hospitalet: Super Samos 29PT-S4 [Radio] ID = 681350 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Cahué Industrial | ||||
|---|---|---|---|---|---|
| Year: 1965 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: SL300_Trans SL300_Trans SL300_Trans 2N3793 SFT323 or. AC139 or. AC128 SFT323 or. AC139 or. AC128 SFD107 SFD112 |
| Main principle | Super-Heterodyne (Super in general); 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 4 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm |
| Power out | |
| from Radiomuseum.org | Model: Super Samos 29PT-S4 - Vanguard; Hospitalet de |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 140 x 83 x 40 mm / 5.5 x 3.3 x 1.6 inch |
| Net weight (2.2 lb = 1 kg) | 0.255 kg / 0 lb 9 oz (0.562 lb) |
| Literature/Schematics (1) | -- Schematic |
