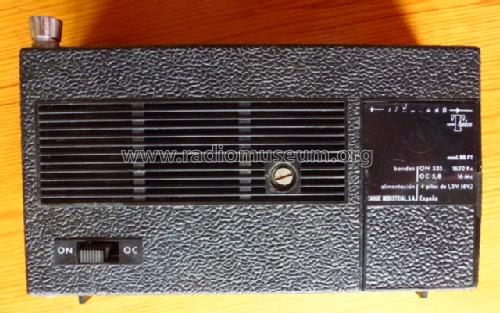

New Talos 88PT

New Talos 88PT; Vanguard; Hospitalet (ID = 1451845) Radio New Talos 88PT; Vanguard; Hospitalet (ID = 1451846) Radio
New Talos 88PT; Vanguard; Hospitalet (ID = 1451847) Radio New Talos 88PT; Vanguard; Hospitalet (ID = 1451849) Radio
New Talos 88PT; Vanguard; Hospitalet (ID = 1453521) Radio New Talos 88PT; Vanguard; Hospitalet (ID = 1453522) Radio
New Talos 88PT; Vanguard; Hospitalet (ID = 1453523) Radio New Talos 88PT; Vanguard; Hospitalet (ID = 1453525) Radio
Use red slider bar for more.
New Talos 88PT; Vanguard; Hospitalet (ID = 1451845) Radio
Vanguard; Hospitalet: New Talos 88PT [Radio] ID = 1451845 800x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model New Talos 88PT, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF194 BF194 BF194 BC148C AC188 AC188
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: New Talos 88PT - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 90 x 40 mm / 6.3 x 3.5 x 1.6 inch
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Domenec Cots-Baraldés. See "Data change" for further contributors.
