• Year
  • 1988
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96875

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • -1
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

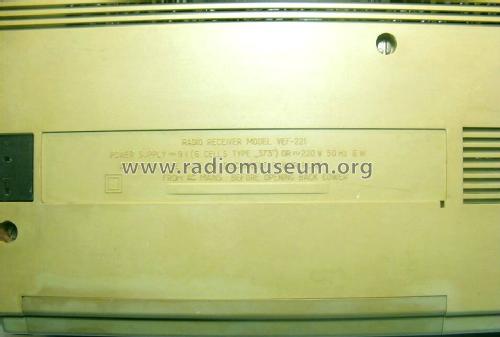

  • Power type and voltage
  • Line / Batteries (any type) / 220; (6 × 1,5) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

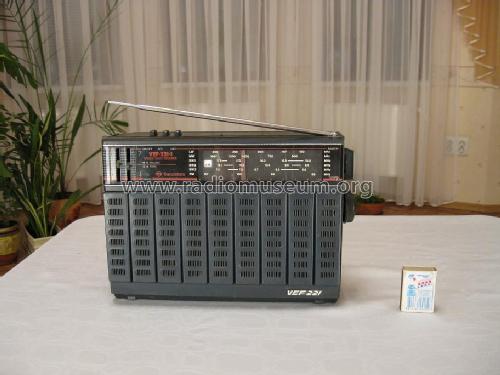

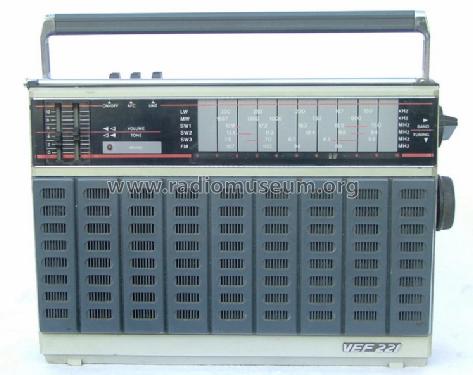

  • Model: VEF 221 - VEF Radio Works Valst
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 297 x 247 x 80 mm / 11.7 x 9.7 x 3.1 inch
  • Notes
  • Coverage MW, LW, 3 SW bands and FM (88-108 MHz).
  • Net weight (2.2 lb = 1 kg)
  • 2.3 kg / 5 lb 1.1 oz (5.066 lb)
  • Literature/Schematics (1)

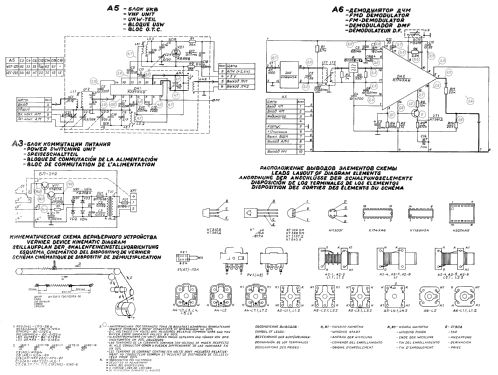

  • -- Schematic
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
