• Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 133286

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Dry Batteries / size D 6 x 1,5 = 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

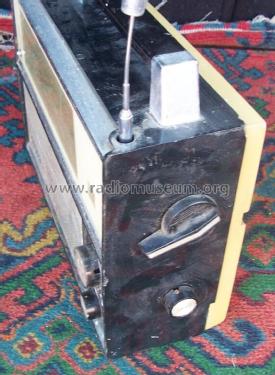

  • Model: Astrad Auriga - VEF Radio Works Valst
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 297 x 229 x 105 mm / 11.7 x 9 x 4.1 inch
  • Notes
  • 5 SW bands. Similar as export VEF 12.
  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Author
  • Model page created by Nikolaj Baranov. See "Data change" for further contributors.
