• Year
  • 1978 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87552

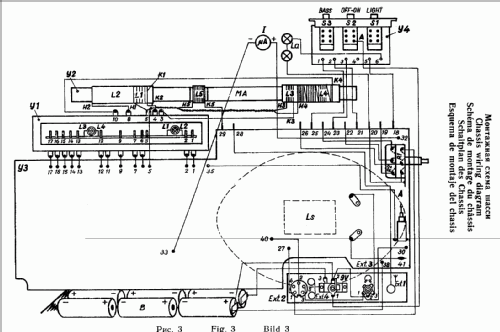

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

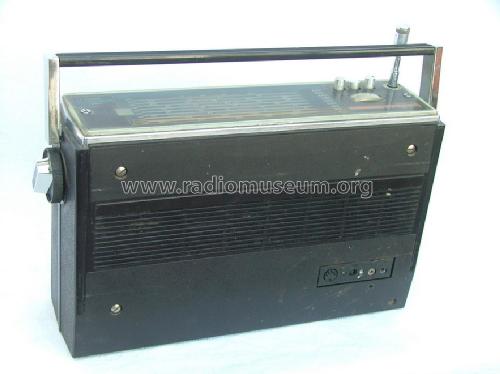

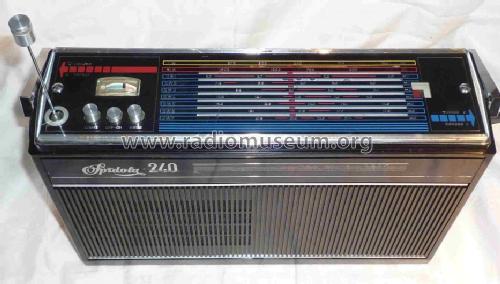

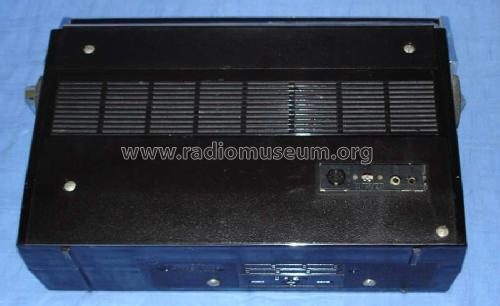

  • Model: Spidola 240 - VEF Radio Works Valst
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 370 x 220 x 100 mm / 14.6 x 8.7 x 3.9 inch
  • Notes
  • 7× Kurzwelle (Spulenrevolver).
  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
  • Price in first year of sale
  • 340.00 Mark
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • Sortimentskatalog Elektroakustik (DDR, 1979)
  • Author
  • Model page created by Hans Fischer. See "Data change" for further contributors.
