• Year
  • 1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210817

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Batteries / addl. power jack / 6 × 1,5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

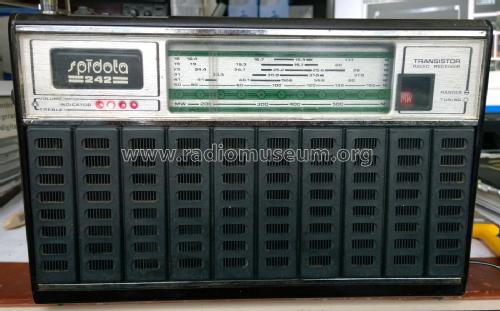

  • Model: Spidola 242 - VEF Radio Works Valst
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 210 x 110 mm / 12.6 x 8.3 x 4.3 inch
  • Notes
  • Coverage MW, LW and six SW bands (16 m, 19 m, 25 m, 31 m, 41 m, 60-150 m).
  • Net weight (2.2 lb = 1 kg)
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
