Turist - Турист PMP-56 - ПМП-56 wooden case

Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473277) Radio Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473278) Radio
Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473281) Radio Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473282) Radio

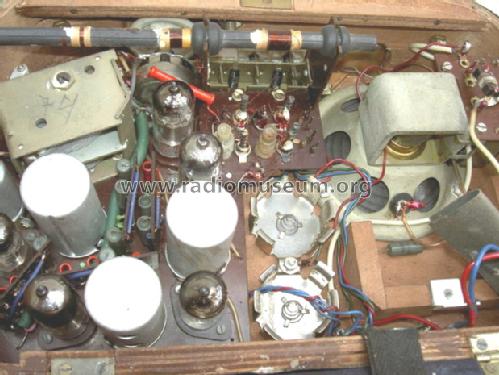

Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473287) Radio Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473295) Radio
Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473296) Radio Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473300) Radio
Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473302) Radio Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 474023) Radio
Use red slider bar for more.
Turist - Турист PMP-56 - ПМП-56; VEF Radio Works (ID = 473277) Radio
VEF Radio Works: Turist - Турист PMP-56 - ПМП-56 [Radio] ID = 473277 603x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model Turist - Турист PMP-56 - ПМП-56 wooden case, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Thanks for Raimonds Austers, Riga, Latvia

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1К2П 1А2П 1К2П 1Б2П 2П2
Main principle Superheterodyne (common); ZF/IF 465 kHz; 7 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 220 / 78 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Turist - Турист PMP-56 - ПМП-56 [wooden case] - VEF Radio Works Valst
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 271 x 180 x 90 mm / 10.7 x 7.1 x 3.5 inch
Notes Battery and electric power supply. 220/127 V AC block (bakelite case) is under radio set as "base" of radio set. Batteries, dry cells 78 V and 1,5 V. (2x R20 parallel). Röhren entsprechen bis auf 30mA Heizstrom DF96, DK96, DF96, DAF96, DL96. Netzteil keine Trennung vom Netz! - Gerät wurde in den russischen Magazinen der Garnisonstädte in der DDR verkauft.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Source of data -- Schematic
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
