• Year
  • 1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146976

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 14
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 127, 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 12 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

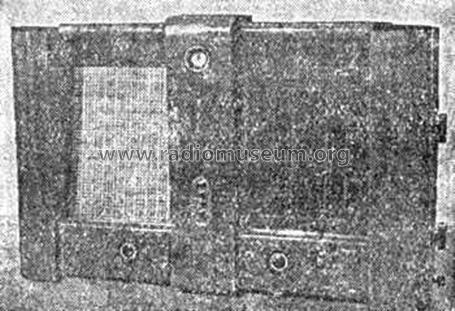

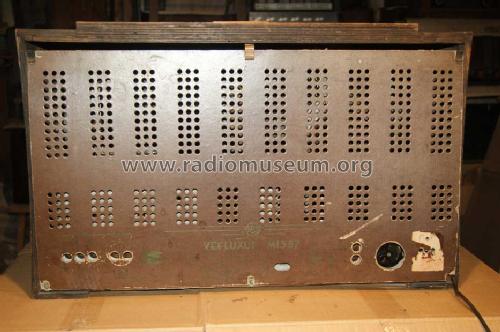

  • Model: VEF Luxus M-1357 - VEF Radio Works Valst
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Design by Latvia radio engineer Alberts Medisons in 1940, till WW2 as model VEF Luxus M1357. Later - in 1945 renamed VEF M-1357. Prototype - radio VEF Luxus M1307.
    Coverage MW,LW and 3SW - SW1(4,1-10,5 MHz), SW2(9,2-23 MHz), SW3(15,03-15,4 MHz).

  • Mentioned in
  • -- Schematic (Past Soviet Union magazine RADIO Nr.06 - 1948)
  • Literature/Schematics (1)
  • Magazine Radio, Nr.6 - 1948, SU
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
