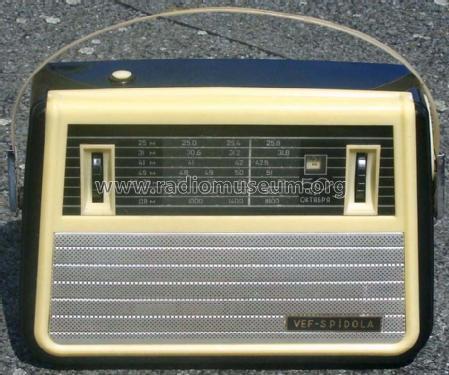

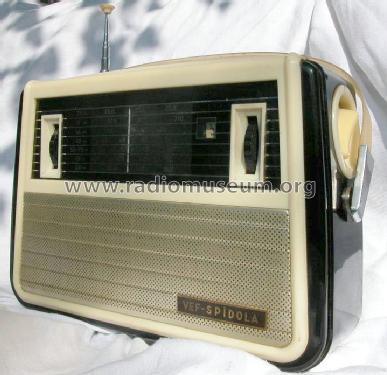

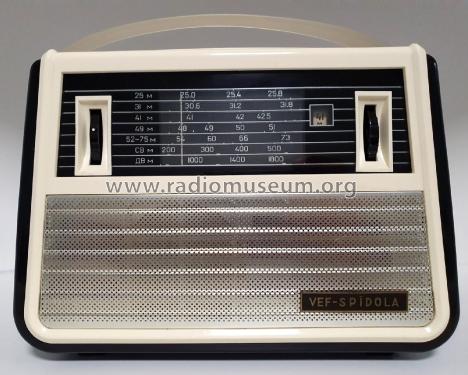

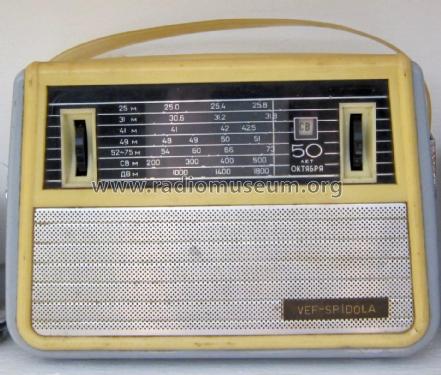

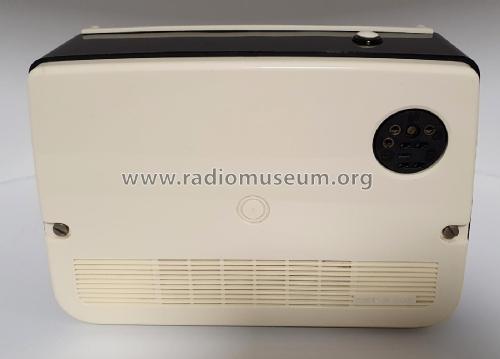

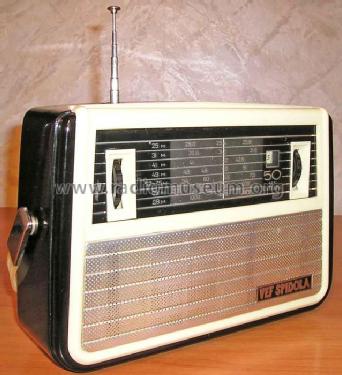

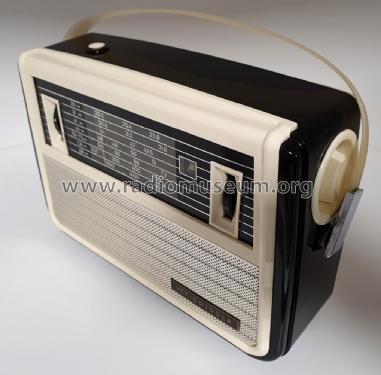

VEF Spidola

VEF Spidola ; VEF Radio Works (ID = 95767) Radio
VEF Spidola ; VEF Radio Works (ID = 2203711) Radio VEF Spidola ; VEF Radio Works (ID = 2203712) Radio
VEF Spidola ; VEF Radio Works (ID = 2203713) Radio VEF Spidola ; VEF Radio Works (ID = 95769) Radio
VEF Spidola ; VEF Radio Works (ID = 133626) Radio VEF Spidola ; VEF Radio Works (ID = 133623) Radio
VEF Spidola ; VEF Radio Works (ID = 95770) Radio VEF Spidola ; VEF Radio Works (ID = 133566) Radio
VEF Spidola ; VEF Radio Works (ID = 133570) Radio VEF Spidola ; VEF Radio Works (ID = 133622) Radio
Use red slider bar for more.
VEF Spidola ; VEF Radio Works (ID = 2203711) Radio
VEF Radio Works: VEF Spidola [Radio] ID = 2203711 1400x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model VEF Spidola, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: П423 П423 П41 П41 П41 П41 П41 П41 П41 П41 Д9 Д101
Main principle Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Dry Batteries / 2 x 4.5 or 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: VEF Spidola - VEF Radio Works Valst
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 197 x 90 mm / 10.8 x 7.8 x 3.5 inch
Notes Coverage LW/MW and five short wave ranges (25, 31, 41, 49 and 52-75 meters).
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 136 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
