Vefon M617

Vefon M617; VEF Radio Works (ID = 525536) Radio Vefon M617; VEF Radio Works (ID = 525538) Radio
Vefon M617; VEF Radio Works (ID = 525539) Radio Vefon M617; VEF Radio Works (ID = 34220) Radio

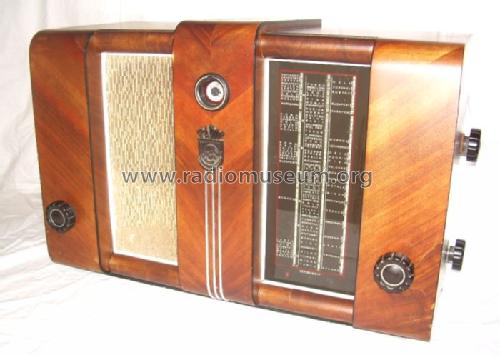

Vefon M617; VEF Radio Works (ID = 514345) Radio Vefon M617; VEF Radio Works (ID = 525537) Radio
Vefon M617; VEF Radio Works (ID = 525540) Radio
Use red slider bar for more.

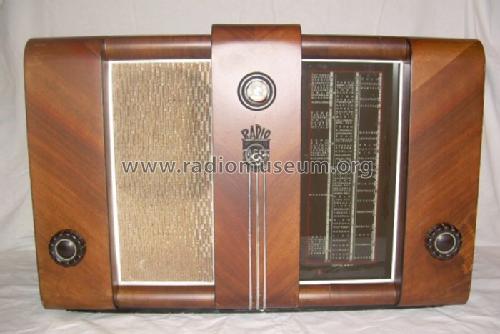

Vefon M617; VEF Radio Works (ID = 525536) Radio
VEF Radio Works: Vefon M617 [Radio] ID = 525536 700x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vefon M617, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 or ECH11 EF9 EBC3 EL3N EM4 or EM11 80S or AZ11
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Vefon M617 - VEF Radio Works Valst
Material Wooden case
Dimensions (WHD) 525 x 355 x 254 mm / 20.7 x 14 x 10 inch
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)

Model page created by Atis Brikmanis. See "Data change" for further contributors.
