For model VEFPer-1-46, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Kaunas Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1948 Category: Wired Receiver (AF only)
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: VEFPer-1-46 - VEF Radio Works Valst
Material Bakelite case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Notes Loudspeaker for receive cable radio broadcasting.
Cable radio sets or "Abonent Radio sets", in fact only loudspeakers for the controlled public cable radio and for political and communal announcements. No choice of programs.

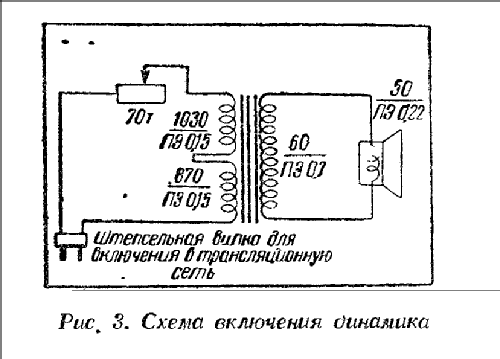

Literature/Schematics (1) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 136 with images and 77 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
