Vefsuper B407

Vefsuper B407; VEF Radio Works (ID = 21028) Radio
Vefsuper B407; VEF Radio Works (ID = 187561) Radio Vefsuper B407; VEF Radio Works (ID = 208558) Radio
Vefsuper B407; VEF Radio Works (ID = 208559) Radio Vefsuper B407; VEF Radio Works (ID = 33370) Radio
Vefsuper B407; VEF Radio Works (ID = 253300) Radio Vefsuper B407; VEF Radio Works (ID = 253301) Radio
Vefsuper B407; VEF Radio Works (ID = 253302) Radio Vefsuper B407; VEF Radio Works (ID = 253303) Radio
Vefsuper B407; VEF Radio Works (ID = 253305) Radio Vefsuper B407; VEF Radio Works (ID = 1303627) Radio
Use red slider bar for more.
Vefsuper B407; VEF Radio Works (ID = 187561) Radio

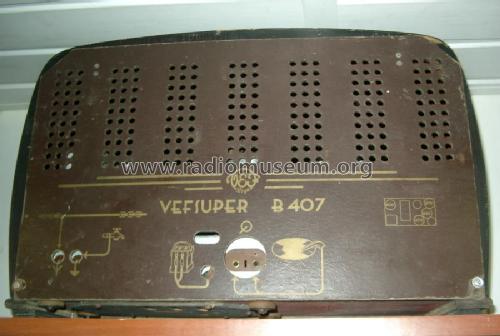

VEF Radio Works: Vefsuper B407 [Radio] ID = 187561 883x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vefsuper B407, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KCH1 KF3 1E7G 1H6G
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 120/2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Vefsuper B407 - VEF Radio Works Valst
Material Wooden case
Dimensions (WHD) 478 x 310 x 217 mm / 18.8 x 12.2 x 8.5 inch
Notes Holz, nur Bakelit imitiert! (Info Atis Brikmanis) Preis in der Schweiz 335 SFr.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 220.00 LVL
External source of data E. Erb 3-907007-36-0


All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 135 with images and 77 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
