Vefsuper KB416; VEF Radio Works (ID = 48144) Radio

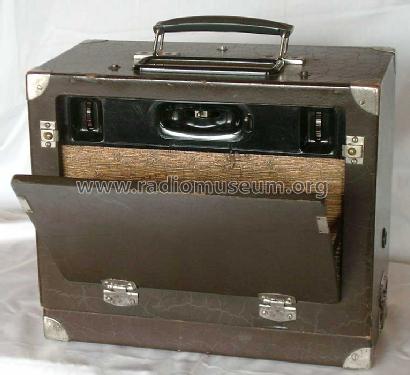

VEF Radio Works: Vefsuper KB416 [Radio] ID = 48144 766x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vefsuper KB416 Zivil, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF22 DBC21 DLL21
Main principle Superheterodyne (common); ZF/IF 132 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 120/2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Vefsuper KB416 [Zivil] - VEF Radio Works Valst
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 270 x 165 mm / 13.4 x 10.6 x 6.5 inch
Notes siehe auch militärische Version des KB416
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Atis Brikmanis. See "Data change" for further contributors.



All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 136 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
VEF Radio Works: Vefsuper KB416
Threads: 1 | Posts: 2
Hits: 1988     Replies: 1
vef: KB416; Vefsuper - welche ZF ist richtig?
Wolfgang Eckardt
12.Aug.05

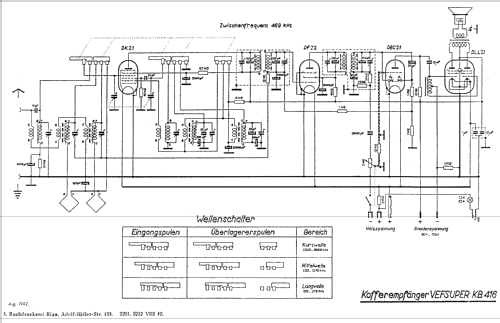

  1 Im Schaltbild ist eine ZF von 469 kHz angegeben, auf dem Datenblatt werden aber 132 kHz genannt. Welche ist richtig? Gab es verschiedene Modell-Varianten?
Wer weiß mehr darüber?
Danke für Informationen sagt

Wolfgang Eckardt
Wolfgang Eckardt
11.Sep.05
  2
Ich erhielt eine Mail mit folgenden Angaben:

Bei dem Empfänger VEF Super KB416 in der Armeevariante mit den Röhren DCH21, DF22, DBC21, DLL21 ZF=469 kHz,  bei der zivilen  früheren Variante mit den Röhren KCH1, KF3, KBC1, DLL21, und ebenso bei VEF Super KB407 mit den amerikanischen Röhren ZF=132 kHz.
Sergey Dawidchik, Carnikava Lettland

Danke

Wolfgang Eckardt

VEF Radio Works: Vefsuper KB416
