Vefsuper LM507

Vefsuper LM507; VEF Radio Works (ID = 1752845) Radio

Vefsuper LM507; VEF Radio Works (ID = 21025) Radio
Vefsuper LM507; VEF Radio Works (ID = 341972) Radio Vefsuper LM507; VEF Radio Works (ID = 341674) Radio
Vefsuper LM507; VEF Radio Works (ID = 341973) Radio Vefsuper LM507; VEF Radio Works (ID = 33374) Radio
Vefsuper LM507; VEF Radio Works (ID = 34190) Radio Vefsuper LM507; VEF Radio Works (ID = 1303049) Radio
Vefsuper LM507; VEF Radio Works (ID = 1303050) Radio Vefsuper LM507; VEF Radio Works (ID = 1303051) Radio
Vefsuper LM507; VEF Radio Works (ID = 1303052) Radio
Use red slider bar for more.
Vefsuper LM507; VEF Radio Works (ID = 341972) Radio

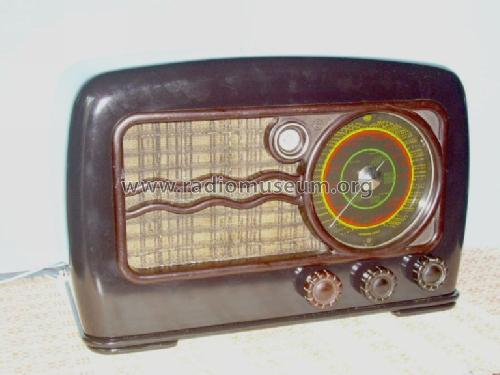

VEF Radio Works: Vefsuper LM507 [Radio] ID = 341972 768x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vefsuper LM507, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6B8G 25L6G 25Z6G 6E5
Main principle Superheterodyne (common); ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)

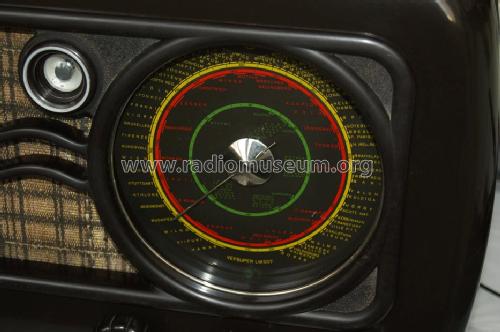

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 120-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Vefsuper LM507 - VEF Radio Works Valst

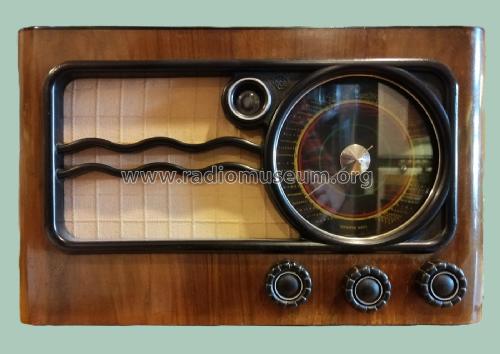

Material Wooden case
Dimensions (WHD) 478 x 310 x 217 mm / 18.8 x 12.2 x 8.5 inch
Notes Preis in der Schweiz 355 SFr.
Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Price in first year of sale 225.00 LVL
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 136 with images and 77 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
