Vega 215 Selena

Vega 215 Selena ; Vega brand, (ID = 243653) Radio Vega 215 Selena ; Vega brand, (ID = 381469) Radio
Vega 215 Selena ; Vega brand, (ID = 223402) Radio Vega 215 Selena ; Vega brand, (ID = 1921991) Radio
Vega 215 Selena ; Vega brand, (ID = 2220431) Radio
Use red slider bar for more.
Vega 215 Selena ; Vega brand, (ID = 243653) Radio
Vega brand,: Vega 215 Selena [Radio] ID = 243653 810x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vega 215 Selena, Vega (brand), Technical and Optical Equipment Ltd.; London:

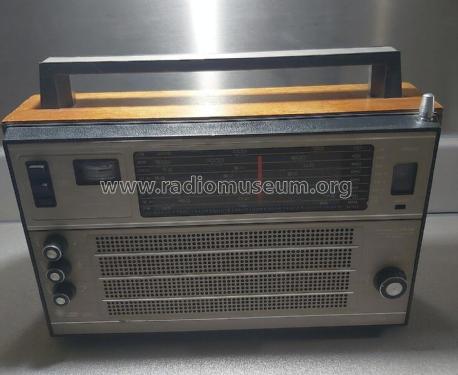

A late 1980s Selena B-215 with the Tento name on the back (short for Technointorg, the Soviet trade organisation formed in 1979) and their export brand name Vega on the front. A conventionally built and competent transistor radio with 17 transistors, ceramic filter and one integrated circuit which performs very well on all wavebands and with excellent sound quality on FM.

Country:  Great Britain (UK)
Manufacturer / Brand:  Vega (brand), Technical and Optical Equipment Ltd.; London
Year: 1985 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-120; 220-240 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Vega 215 Selena - Vega brand, Technical and
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 367 x 225 x 119 mm / 14.4 x 8.9 x 4.7 inch
Notes

7 wavebands:

  • LW: 148 - 285 kHz
  • BC: 525 - 1607 kHz
  • SW5: 5.95 - 7.30 MHz
  • SW4: 9.50 - 9.77 MHz
  • SW3: 11.7 - 12.1 MHz
  • SW2: 15.1 - 15.45 MHz
  • SW1: 17.7 - 17.9 MHz
  • FM: 87.5 - 108.0 MHz

This is a rebranded version of Selena B-215 made by Minsk Radio Works.

Made in USSR.

Collectors' prices

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Vega (brand), Technical and Optical Equipment Ltd.; London
Here you find 15 models, 13 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
