Voice-Changer (Stimmenverzerrer) MK171

Voice-Changer MK171; Velleman, SA; Legen (ID = 1759578) Kit

Voice-Changer MK171; Velleman, SA; Legen (ID = 1759581) Kit

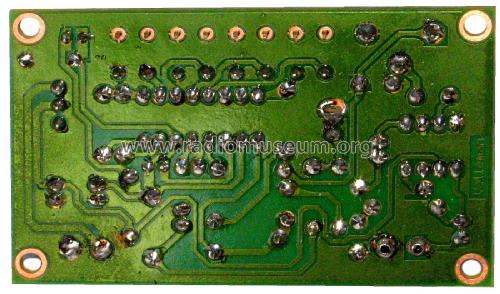

Voice-Changer MK171; Velleman, SA; Legen (ID = 1759576) Kit Voice-Changer MK171; Velleman, SA; Legen (ID = 1759582) Kit
Use red slider bar for more.
Voice-Changer MK171; Velleman, SA; Legen (ID = 1759576) Kit
Velleman, SA; Legen: Voice-Changer MK171 [Kit] ID = 1759576 1400x1231
Select picture or schematic to display from thumbnails on the right and click for download.
For model Voice-Changer (Stimmenverzerrer) MK171, Velleman, SA; Legen Heirweg Gavere Belgique:
Nach Bauanleitung selbst aufgebautes Modell.

Country:  Belgium
Manufacturer / Brand:  Velleman, SA; Legen Heirweg Gavere Belgique
Year: 2012 ? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) HT8950A LM386
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Voice-Changer MK171 - Velleman, SA; Legen Heirweg
Material Printed Circuit Board
Shape Chassis only or for «building in»
Notes

Ein über ein Elektretmikrophon aufgenommenes NF-Signal lässt sich in verschiedene Effekte verschieben (Tonhöhe) und umwandeln (Tonart).

Bausatz komplett mit LP und allen Bauteilen.

Made in Hong Kong.

Price in first year of sale 8.00 €
Mentioned in Funkamateur 2014, H.12

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
