Multi-Band Receiver 2986-6

Venturer Electronics, Inc.; Markham (Ontario)

Data
Forum
Pictures
Collections

  • Year
  • 1986 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 338965

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage

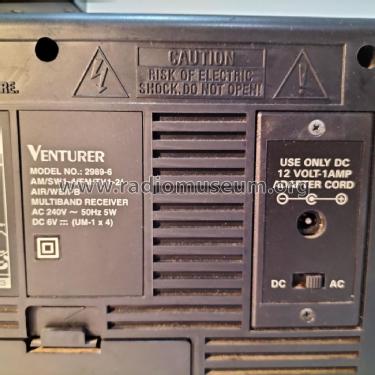

  • Line plus power jack, mostly with battery or storage battery / 240 / D: 4 x 1.5 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Multi-Band Receiver 2986-6 - Venturer Electronics, Inc.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 380 x 220 x 145 mm / 15 x 8.7 x 5.7 inch
  • Notes

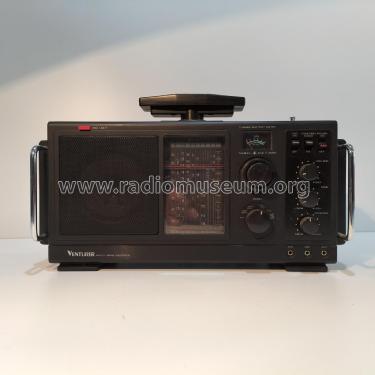

  • Venturer 2986-6, AM-SW1-SW2-SW3-SW4-FM-TV1-TV2-AIR-WB-PB-Multiband Receiver.
    AM 530 - 1600 kHz
    SW1 & 2: 2.3 - 7 MHz & SW3 & 4: 7 - 22 MHz.
    TV1 CH 1 - 5 &  TV2 CH 6 - 11. FM 88 - 108 Mhz.
    Air-WB-PB: 108 - 174 MHz,

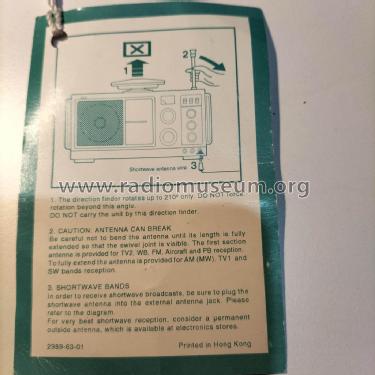

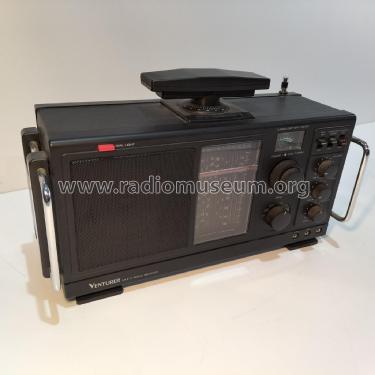

    Earphone jack, ext. mic- and antenna in, turnable direction finder AM ferrite bar antenna, AFC, fine tuning, tone control, batt./tuning meter, two front metal carrying handles.
    Country of origin probably Hong Kong and sold by Ventura Canada for the 240V 50Hz market.

    See also Model 2959-2 & Model 2959-2C.

  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
