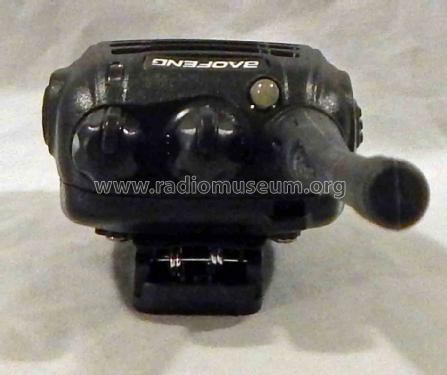

UHF Transceiver Baofeng BF-888S

UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087902) Amateur UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087903) Amateur
UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087904) Amateur UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087905) Amateur
UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087906) Amateur UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087907) Amateur
UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087908) Amateur
Use red slider bar for more.
UHF Transceiver Baofeng BF-888S; Vero Global (ID = 2087902) Amateur
Vero Global: UHF Transceiver Baofeng BF-888S [Amateur] ID = 2087902 690x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model UHF Transceiver Baofeng BF-888S, Vero Global Communication Co., Ltd.; Fujian

Country:  People's Republic of China
Manufacturer / Brand:  Vero Global Communication Co., Ltd.; Fujian
Year: 2014 ? Category: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 3.7 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: UHF Transceiver Baofeng BF-888S - Vero Global Communication Co.,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 115 x 33 mm / 2.4 x 4.5 x 1.3 inch
Notes

The Baofeng BF-888S is a 16 channel, handheld transceiver operating from 400 to 470 MHz with 4 watts output. The BF-888S will transmit and receiver throughout the entire coverage. Software must be used to set channels. Handheld comes packaged with charger, belt clip, VOX earpiece and mic, wrist strap and manual.

Voice inversion scrambling is possible and can be programmed for each channel by using the RSS 888S V1.05



Net weight (2.2 lb = 1 kg) 0.150 kg / 0 lb 5.3 oz (0.33 lb)
Price in first year of sale 14.95 USD

Model page created by Wayne Childress. See "Data change" for further contributors.
