Radio Receiver No. 520
Victory Radio-Electro Co.; San Francisco, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Victory Radio-Electro Co.; San Francisco, CA
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197916
- Number of Tubes
- 3
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Horn
- Material
- TUBES VISIBLE, material not known.
- from Radiomuseum.org
- Model: Radio Receiver No. 520 - Victory Radio-Electro Co.; San
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Victory-Grantone Radio Receiver No. 520 consisted of the No. 500 Tuner/Detector and the No. 525 Amplifying Loud Speaker together on a mulberry colored velour base. The No. 520 set was available without tubes and batteries for $55 or including both for $85. This receiver covered the 175 to 700 meters wavelength range.
- Price in first year of sale
- 85.00 $
- Literature/Schematics (1)

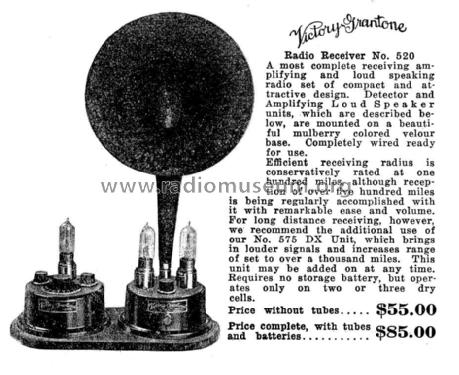

- April 1923 Radio magazine advertisement page 53
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
