- Country
- United States of America (USA)
- Manufacturer / Brand
- Videodyne Inc.; Stanford, Conn.
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228469

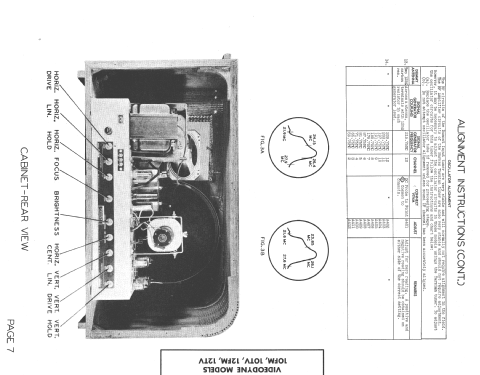

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 10FM - Videodyne Inc.; Stanford, Conn
- Shape
- Tablemodel, with any shape - general.
- Notes
-
44 through 216MC
FM Chassis also used in 10TV and 12TV TV modells
Dumont Tuner for FM used
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol 9/49 4917-15 Set#69 Folder 15)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
