Transistor B037F

Transistor B037F; Videoton; (ID = 1466506) Radio
Transistor B037F; Videoton; (ID = 1321978) Radio Transistor B037F; Videoton; (ID = 1321983) Radio
Transistor B037F; Videoton; (ID = 1320213) Radio Transistor B037F; Videoton; (ID = 1321976) Radio
Transistor B037F; Videoton; (ID = 1321977) Radio Transistor B037F; Videoton; (ID = 1321979) Radio
Transistor B037F; Videoton; (ID = 1321980) Radio Transistor B037F; Videoton; (ID = 1321981) Radio
Transistor B037F; Videoton; (ID = 1321982) Radio
Use red slider bar for more.
Transistor B037F; Videoton; (ID = 1321978) Radio
Videoton;: Transistor B037F [Radio] ID = 1321978 933x773

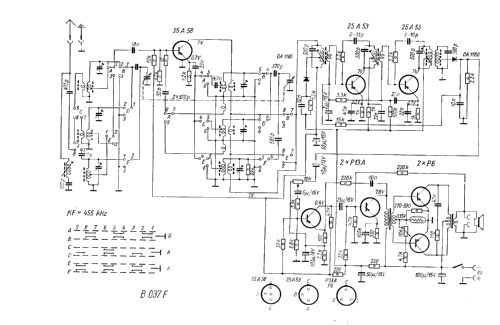

Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor B037F, Videoton; Székesfehérvár:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA58 2SA58 2SA53 2SA53 2SB54 П6А П6А
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 2 × 4,5 or 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Transistor B037F - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 260 x 180 mm / 15.7 x 10.2 x 7.1 inch
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Mentioned in Radio es Televizio Vevö Keszülekek, 1960-63

Model page created by Gabriel Toth. See "Data change" for further contributors.
