Velence B646 (646B - B646V)

Velence B646 ; Videoton; (ID = 220618) Radio

Velence B646 ; Videoton; (ID = 1511929) Radio

Velence B646 ; Videoton; (ID = 1926941) Radio
Velence B646 ; Videoton; (ID = 1516537) Radio Velence B646 ; Videoton; (ID = 1516538) Radio
Velence B646 ; Videoton; (ID = 1583703) Radio Velence B646 ; Videoton; (ID = 1636482) Radio
Velence B646 ; Videoton; (ID = 1636483) Radio Velence B646 ; Videoton; (ID = 1636484) Radio
Velence B646 ; Videoton; (ID = 1636485) Radio Velence B646 ; Videoton; (ID = 1636486) Radio
Velence B646 ; Videoton; (ID = 1636487) Radio Velence B646 ; Videoton; (ID = 1636488) Radio
Use red slider bar for more.
Velence B646 ; Videoton; (ID = 1516537) Radio
Videoton;: Velence B646 [Radio] ID = 1516537 804x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model Velence B646 (646B - B646V), Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation Hungary.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1958–1961 Category: Broadcast Receiver - or past WW2 Tuner

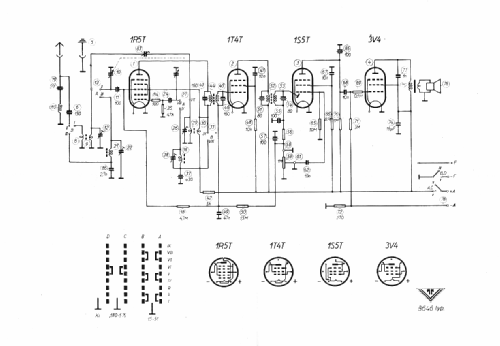

Valves / Tubes 4: 1R5T 1T4T 1S5T 3V4
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 60; 90 / 1,4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Velence B646 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 260 x 190 mm / 15 x 10.2 x 7.5 inch
Notes 1,4V Heizspannung und 60 oder 90V Anodenspannung.Klangregler, KW-Bereich 5,8-16MHz
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 980.00 HUF
Source of data Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
