Badacsony RO-3321

Badacsony RO-3321; Videoton; (ID = 508869) Radio Badacsony RO-3321; Videoton; (ID = 508876) Radio
Badacsony RO-3321; Videoton; (ID = 508874) Radio Badacsony RO-3321; Videoton; (ID = 508871) Radio
Badacsony RO-3321; Videoton; (ID = 508873) Radio Badacsony RO-3321; Videoton; (ID = 508875) Radio
Badacsony RO-3321; Videoton; (ID = 709209) Radio Badacsony RO-3321; Videoton; (ID = 713380) Radio
Badacsony RO-3321; Videoton; (ID = 713381) Radio Badacsony RO-3321; Videoton; (ID = 1748916) Radio
Use red slider bar for more.
Badacsony RO-3321; Videoton; (ID = 508869) Radio
Videoton;: Badacsony RO-3321 [Radio] ID = 508869 933x491
Select picture or schematic to display from thumbnails on the right and click for download.
For model Badacsony RO-3321, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt

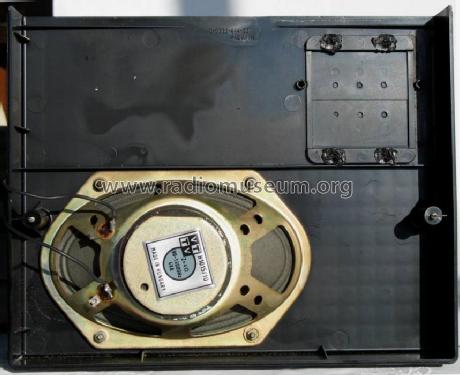

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Badacsony RO-3321 - Videoton; Székesfehérvár
Material Modern plastics (no Bakelite or Catalin)

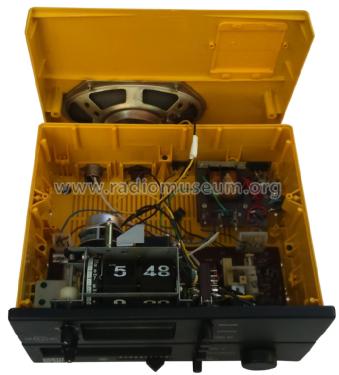

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 240 x 120 x 200 mm / 9.4 x 4.7 x 7.9 inch
Notes 2 IC.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
