Camping de Luxe BR113 A

Camping de Luxe BR113; Videoton; (ID = 1465780) Radio

Camping de Luxe BR113; Videoton; (ID = 1465781) Radio
Camping de Luxe BR113; Videoton; (ID = 1430235) Radio Camping de Luxe BR113; Videoton; (ID = 388663) Radio
Camping de Luxe BR113; Videoton; (ID = 1430234) Radio Camping de Luxe BR113; Videoton; (ID = 1430236) Radio
Camping de Luxe BR113; Videoton; (ID = 1430237) Radio Camping de Luxe BR113; Videoton; (ID = 1430238) Radio
Camping de Luxe BR113; Videoton; (ID = 1430240) Radio Camping de Luxe BR113; Videoton; (ID = 1430241) Radio
Camping de Luxe BR113; Videoton; (ID = 1430242) Radio Camping de Luxe BR113; Videoton; (ID = 1933715) Radio
Use red slider bar for more.
Camping de Luxe BR113; Videoton; (ID = 1430235) Radio
Videoton;: Camping de Luxe BR113 [Radio] ID = 1430235 933x989

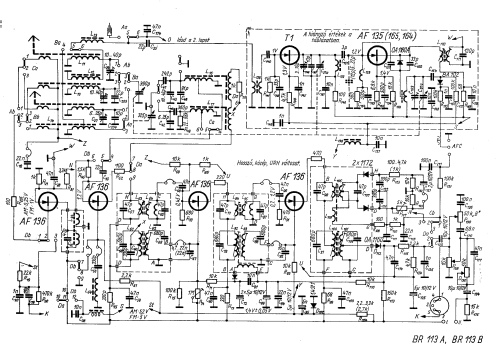

Select picture or schematic to display from thumbnails on the right and click for download.
For model Camping de Luxe BR113 A, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF135 AF136 AF136 AF136 AF136 AC125 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / UM1: 4 × 1,5 / 6; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Camping de Luxe BR113 [A] - Videoton; Székesfehérvár
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 81 mm / 11 x 7.5 x 3.2 inch
Notes AF106, 3× AF135, 2× AF136, AC125, AC126, 2× AC128. URH 87,5-104MHz.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data Radio es Televizio Vevö keszülekek 1967-69
Literature/Schematics (4) Rádiótechnika Évkönyv, 1968.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
