Camping de Luxe BR113; Videoton; (ID = 316761) Radio
Videoton;: Camping de Luxe BR113 [Radio] ID = 316761 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camping de Luxe BR113 B, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF134 AF135 AF135 AF135 AF136 AF136 AC125 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / UM1: 4 ×1,5 / 6; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Camping de Luxe BR113 [B] - Videoton; Székesfehérvár
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 81 mm / 11 x 7.5 x 3.2 inch
Notes UKW 63-74 MHz (OIRT-Band). Exportmodell für Tschechoslowakei.
Das Radio mit dem man aussteigt. Es wurde im PKW in die vorbereitete Halterung geschoben und dann mittels Autobatterie versorgt. Externer Lautsprecher sowie Autoantenneneingang.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Mentioned in Radio es Televizio Vevö keszülekek 1967-69

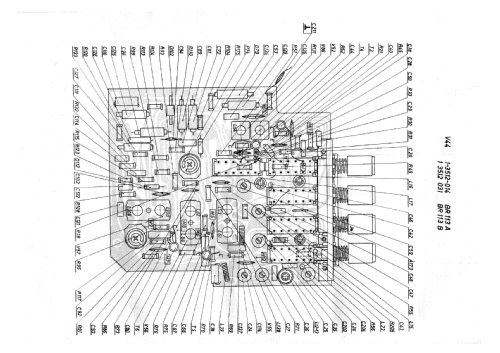

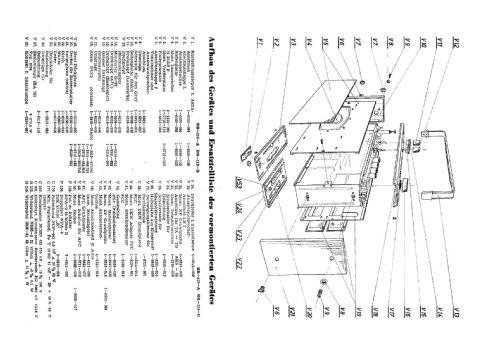

Literature/Schematics (4) Rádiótechnika Évkönyv, 1968.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
