Camping de Luxe RB3610

Camping de Luxe RB3610; Videoton; (ID = 1998740) Radio Camping de Luxe RB3610; Videoton; (ID = 1998742) Radio

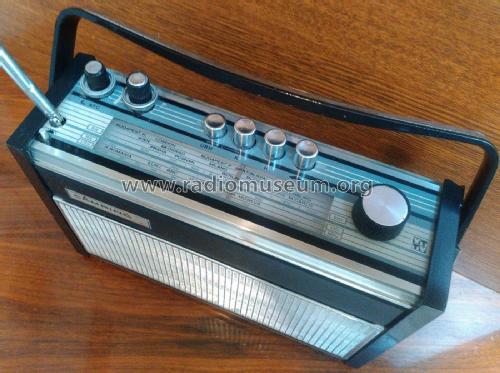

Camping de Luxe RB3610; Videoton; (ID = 2016560) Radio Camping de Luxe RB3610; Videoton; (ID = 2016561) Radio
Camping de Luxe RB3610; Videoton; (ID = 2016563) Radio Camping de Luxe RB3610; Videoton; (ID = 2016564) Radio
Camping de Luxe RB3610; Videoton; (ID = 2016565) Radio
Use red slider bar for more.
Camping de Luxe RB3610; Videoton; (ID = 1998740) Radio
Videoton;: Camping de Luxe RB3610 [Radio] ID = 1998740 1006x752
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camping de Luxe RB3610, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation Hungary (radio-muzeum.hu).

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF135 AF135 AF135 AF136 AF136 AC125 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (undistorted)
from Radiomuseum.org Model: Camping de Luxe RB3610 - Videoton; Székesfehérvár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 81 mm / 11 x 7.5 x 3.2 inch
Notes

UKW 86-104 MHz, 5 Dioden, Autoanschluss, LS-Buchse, 5pol. DIN-Buchse, Autoantennenanschluss, Klangregler, Skalenbeleuchtung.

Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
