Car Radio RD5686 K

Car Radio RD5686 K; Videoton; (ID = 1380051) Car Radio Car Radio RD5686 K; Videoton; (ID = 1380052) Car Radio
Car Radio RD5686 K; Videoton; (ID = 1380053) Car Radio Car Radio RD5686 K; Videoton; (ID = 1380054) Car Radio
Car Radio RD5686 K; Videoton; (ID = 1380055) Car Radio
Use red slider bar for more.

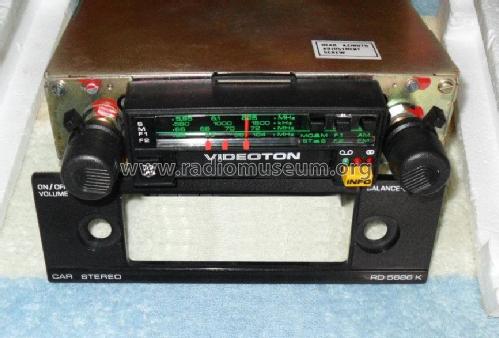

Car Radio RD5686 K; Videoton; (ID = 1380051) Car Radio
Videoton;: Car Radio RD5686 K [Car Radio] ID = 1380051 868x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car Radio RD5686 K, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1984 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (max.)
from Radiomuseum.org Model: Car Radio RD5686 K - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 45 x 178 mm / 5.9 x 1.8 x 7 inch
Notes

Has both CCIR and OIRT FM bands. FM stereo. Switchable Traffic Info system (ARI?).
LED indicators for Stereo, Traffic Info and tape. Cassette deck with fast forward.

40-12500 Hz.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
